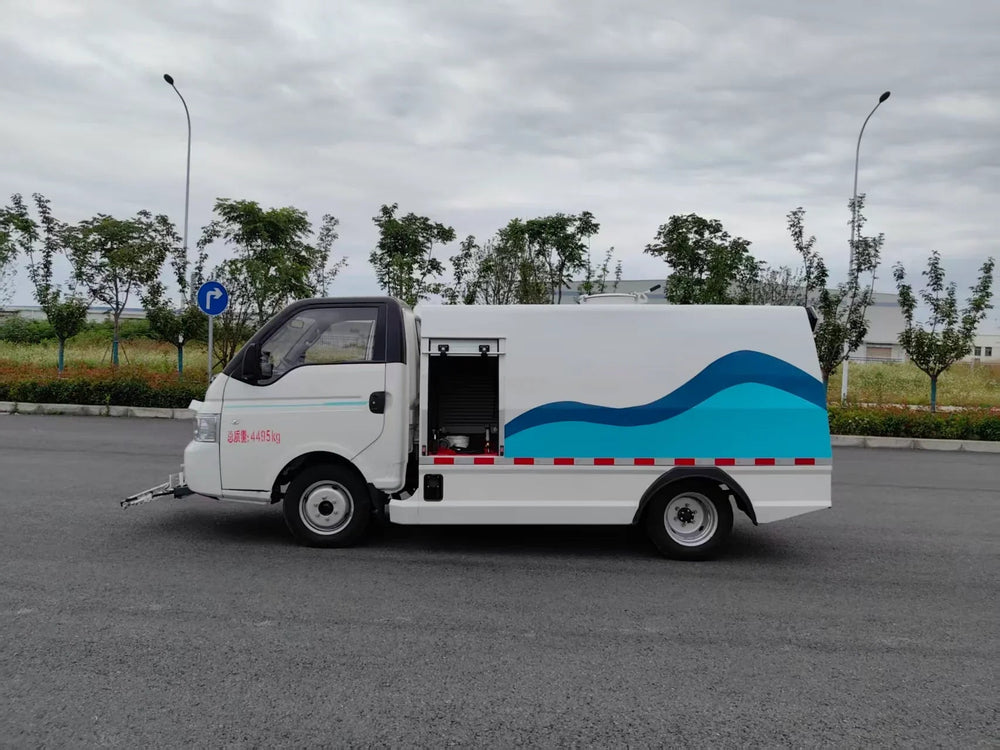

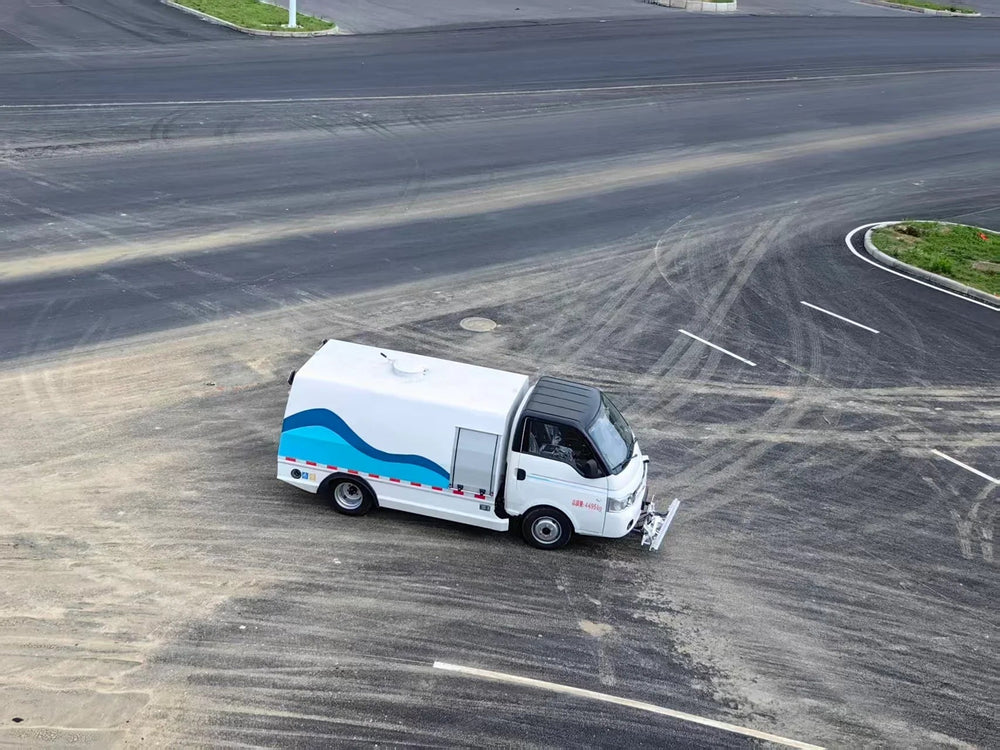

4.5T EV Road Maintenance Truck

4.5T EV Road Maintenance Truck
4.5T EV Road Maintenance Truck
4.5T EV Road Maintenance Truck
1 / 3
4.5T EV Road Maintenance Truck
4.5T EV Road Maintenance Truck
4.5T EV Road Maintenance Truck

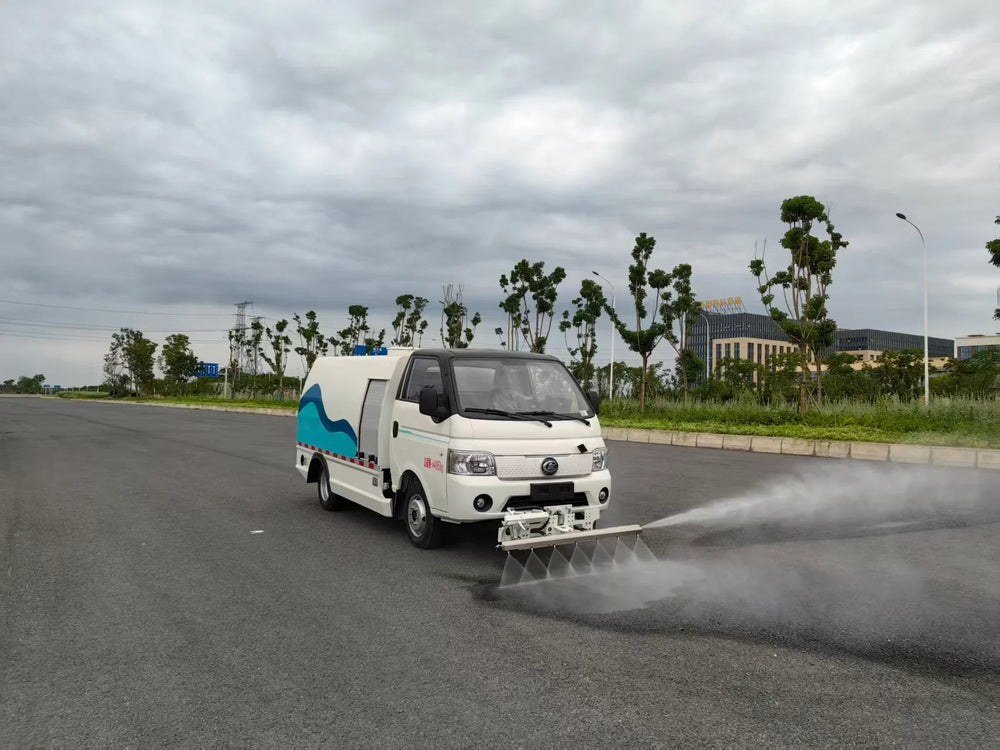

Zero-emission electric vehicle for road sweeping, washing and daily pavement maintenance of municipal roads.

Parameter Core Specification
1. Whole Vehicle Basic Parameters
Vehicle Model CL5042TYHBEV Battery Electric Road Maintenance Truck
Gross Vehicle Weight (GVW) 4495 kg
Curb Weight 2860 kg
Payload Capacity 1505 kg
Rated Passenger Capacity 2 persons
Cab Model Kaima
Overall Dimensions (L×W×H) 5440×1880×2150mm (standard) / 2250mm (optional)
Wheelbase 2800 mm
Front Extension / Front Overhang / Rear Overhang 415 / 1210 / 1015 mm
Approach / Departure Angle 11° / 18°
Front / Rear Track Width 1405 / 1240 mm
Minimum Ground Clearance 185 mm
Minimum Turning Diameter 13 m
Tire Specification 185R15LT 8PR
2. Chassis & Electric Powertrain Parameters
Chassis Manufacturer Shenbai Automobile Group Co., Ltd.
Chassis Model CL1041JBEV
Drive Configuration 4×2
Battery Type Lithium Iron Phosphate (LFP)
Battery Manufacturer Gotion High-tech
Battery Capacity 57.6 kWh
Nominal Voltage / Capacity 384V / 150Ah
Battery System Energy Density 140.3 Wh/kg
Drive Motor Manufacturer Chengdu Yiwei New Energy Automobile Co., Ltd.
Drive Motor Model TZ210XSZ03
Rated / Peak Power 55 / 110 kW
Rated / Peak Torque 150 / 318 Nm
Rated / Peak Speed 3500 / 12000 rpm
Maximum Speed 90 km/h
Driving Range 265 km (40km/h constant speed)
Maximum Gradeability (Fully Loaded) 25%
Fast Charging Time (20%-100% SOC) 1.0h (single-gun fast charge)
3. Specialized Upper Equipment Parameters
Water Tank Volume 2.5 m³
Upper Equipment Motor Rated / Peak Power 10 / 15 kW
High-Pressure Water Pump Brand Pinful / AR
High-Pressure Water Pump Model PD4020 / XW30.25
High-Pressure Water Pump Rated Pressure 20 MPa (standard PD4020 pump) / 25 MPa (optional XW30.25 pump)
High-Pressure Water Pump Rated Flow Rate 40 L/min (standard PD4020 pump) / 30 L/min (optional XW30.25 pump)
Water Circuit System Pressure 12 MPa (standard PD4020 pump) / 13 MPa (optional XW30.25 pump)
Front Spray Bar Cleaning width ≥1.7m; 100mm liftable; ±20° left-right swing
Hose Reel 15m standard, 20m optional
Working Equipment Standard: Front spray bar, spot spray, left & right corner spray, hose reel + hand-held spray gun, hand-push spray bar

Optional: Rear spray, lifting platform
