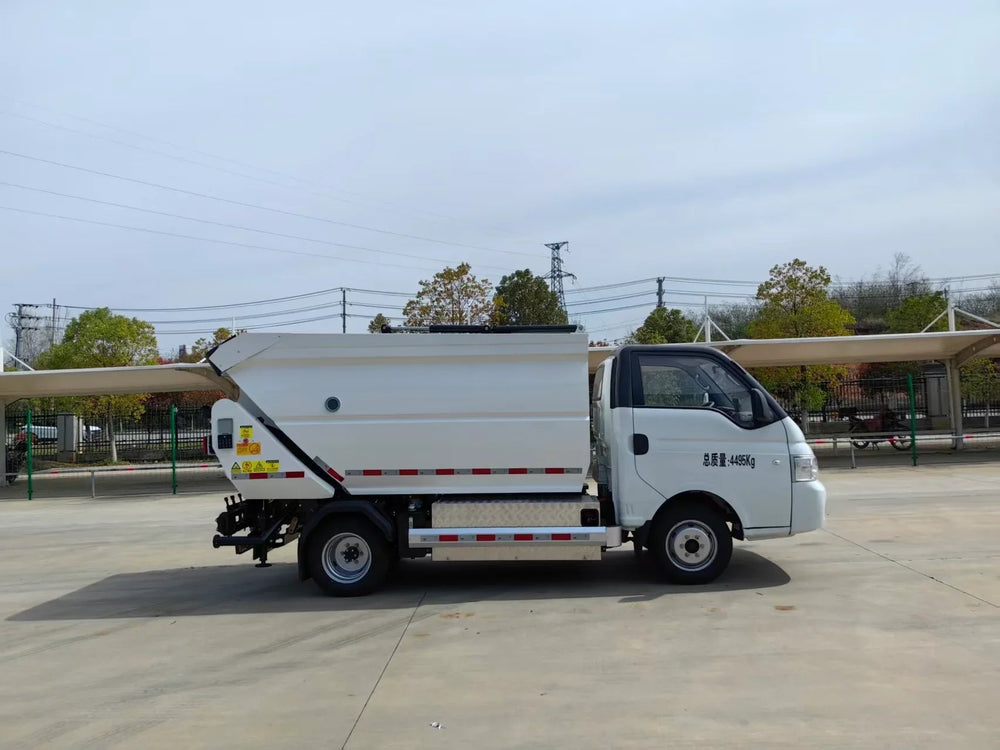

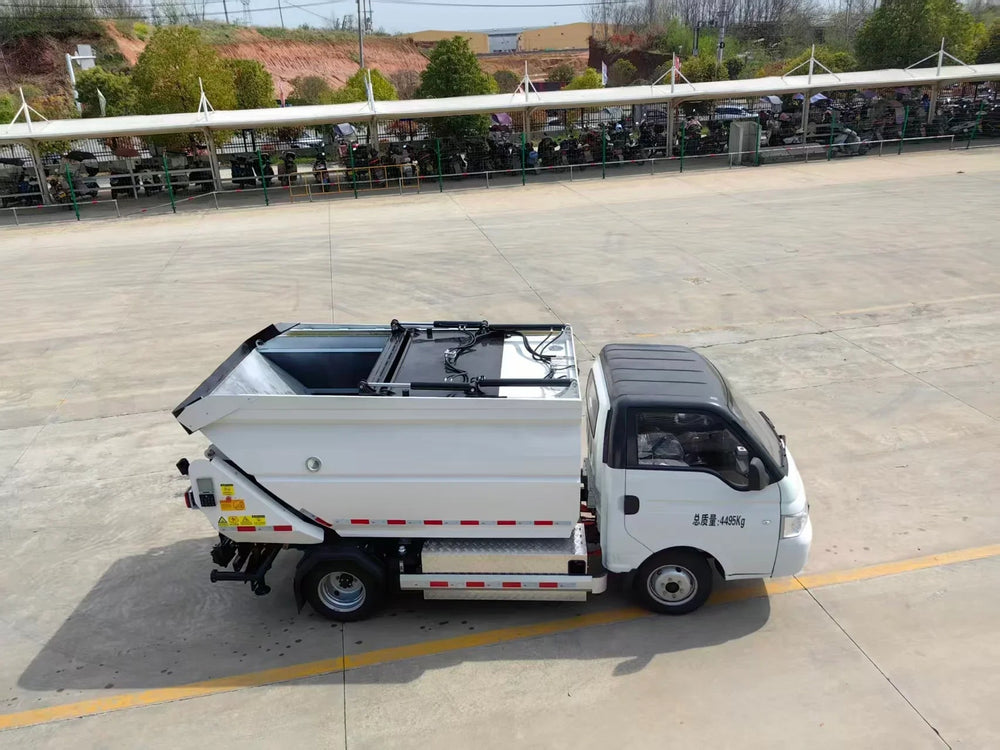

4.5T EV Self-loading Dump Truck

4.5T EV Self-loading Dump Truck
4.5T EV Self-loading Dump Truck
4.5T EV Self-loading Dump Truck
1 / 3
4.5T EV Self-loading Dump Truck
4.5T EV Self-loading Dump Truck
4.5T EV Self-loading Dump Truck
Parameter Core Specification
1. Whole Vehicle Basic Parameters
Vehicle Model CL5048ZZZBEV Battery Electric Self-Loading/Unloading Garbage Truck
Gross Vehicle Weight (GVW) 4495 kg
Curb Weight 3360 kg / 3250 kg
Payload Capacity 1005 kg / 1115 kg
Rated Passenger Capacity 2 persons
Cab Model Kaima
Overall Dimensions (L×W×H) 5180×1890×2230mm / 5180×1890×2095mm
Wheelbase 2800 mm
Front / Rear Overhang 1210 / 1170 mm
Approach / Departure Angle 21° / 20°
Front / Rear Track Width 1405 / 1240 mm
Minimum Ground Clearance 185 mm
Minimum Turning Diameter 13 m
Tire Specification 185R15LT 8PR
2. Chassis & Electric Powertrain Parameters
Chassis Manufacturer Shenbai Automobile Group Co., Ltd.
Chassis Model CL1041JBEV
Drive Configuration 4×2
Battery Type Lithium Iron Phosphate (LFP)
Battery Manufacturer Gotion High-tech
Battery Capacity 57.6 kWh
Nominal Voltage / Capacity 384V / 150Ah
Battery System Energy Density 140.3 Wh/kg
Drive Motor Manufacturer Chengdu Yiwei New Energy Automobile Co., Ltd.
Drive Motor Model TZ210XSZ03
Rated / Peak Power 55 / 110 kW
Rated / Peak Torque 150 / 318 Nm
Rated / Peak Speed 3500 / 12000 rpm
Maximum Speed 90 km/h
Driving Range 265 km (40km/h constant speed)
Maximum Gradeability (Fully Loaded) 25%
Fast Charging Time (30%-80% SOC) 0.5h (single-gun fast charge)

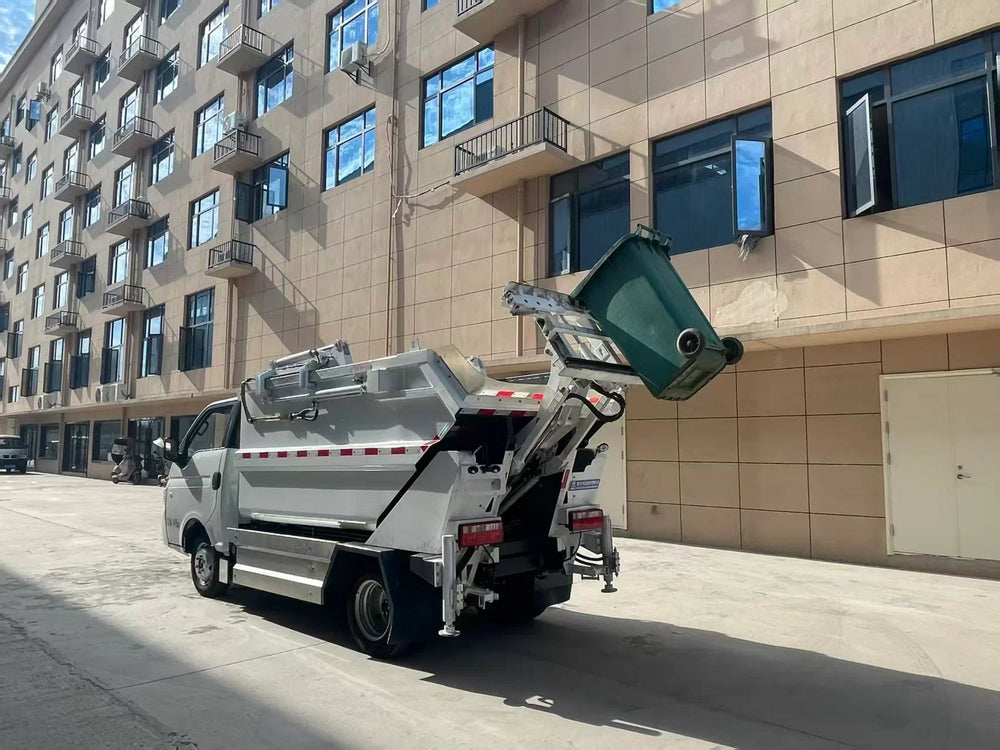

3. Specialized Upper Equipment Parameters
Garbage Bin Maximum Volume 4.5 m³ / 4 m³
Bin Lifting Capacity 300 kg
Actual Loading Capacity 2 t / 1.5 t
Maximum Lifting Capacity 2.8 t
Hydraulic System Maximum Pressure 16 MPa
Compatible Standard Garbage Bins 120L single bin / 120L double bins / 240L single bin / 240L double bins (660L bin lifting mechanism optional)
Garbage Bin Lifting Time 25±3 s
Garbage Bin Lowering Time 20±3 s
Bin Lifting Cycle Time 10±2 s
Bin Lowering Cycle Time 6±2 s
Compression Cycle Time 26±2 s
