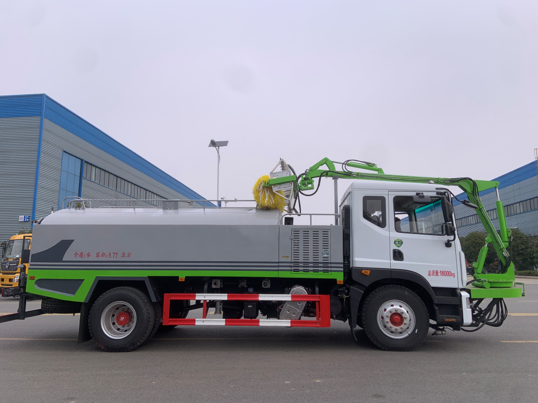

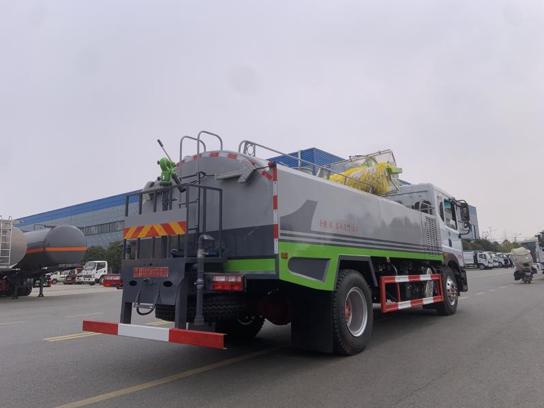

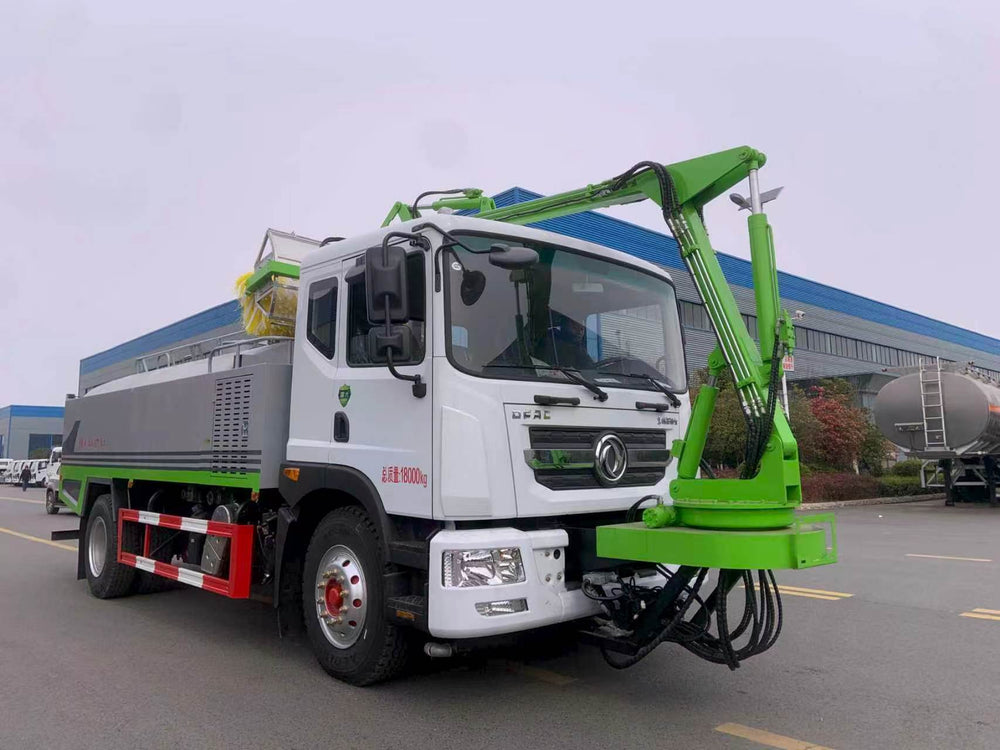

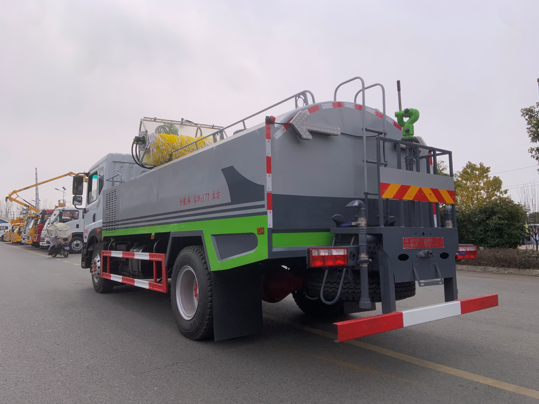

DongFeng 12m³ Tunnel Cleaning Truck

DongFeng 12m³ Tunnel Cleaning Truck
DongFeng 12m³ Tunnel Cleaning Truck
DongFeng 12m³ Tunnel Cleaning Truck
DongFeng 12m³ Tunnel Cleaning Truck
1 / 4
DongFeng 12m³ Tunnel Cleaning Truck
DongFeng 12m³ Tunnel Cleaning Truck
DongFeng 12m³ Tunnel Cleaning Truck
DongFeng 12m³ Tunnel Cleaning Truck

1. Complete Vehicle Basic Parameters

Parameter Value
Vehicle Type Tunnel Cleaning Truck
Complete Vehicle Model CL5185GQX6HL
Gross Vehicle Weight 18000 kg
Rated Load Capacity 9305 kg
Curb Weight 8500 kg
Number of Axles 2
Axle Load Distribution 6500 kg / 11500 kg
Cab Seating Capacity 3 persons
Fuel Type Diesel
Maximum Speed 105 km/h
Chassis Model EQ1185LJ9CDE

2. Dimension & Wheel Parameters

Parameter Value
Overall Dimension (L×W×H) 9250 × 2500 × 3700 mm
Tank External Dimension 4200 × 2500 × 1250 mm
Wheelbase 4500 mm / 4700 mm
Front Overhang / Rear Overhang 1260 mm / 2290 mm
Approach Angle / Departure Angle 10° / 12°
Front Track Width 1862 / 1933 / 1949 mm
Rear Track Width 1806 / 1865 mm
Tire Specification 10.00R20 18PR
Number of Tires 6

3. Powertrain System

Parameter Value
Engine Model Options B6.2NS6B230 / D4.0NS6B195
Engine Power Options Cummins 230 HP / Cummins 195 HP
Transmission Shaanxi Fast 8-speed Gearbox

4. Water Tank & Sprinkler System

Parameter Value
Tank Volume Approx. 12 m³
Tank Material Q235 Carbon Steel
Tank Wall Thickness 4 mm
Splash Guard Thickness 3 mm
Low-Pressure Sprinkler Pump Tianyi 50-110 Water Pump
Low-Pressure Pump Speed 1480 r/min
Low-Pressure Water Flow 50 m³/h
Low-Pressure Pump Lift 110 m
Low-Pressure Self-Priming Performance 1.5 min / 4 m
Standard Functions Opposite flush (optional universal duckbill nozzle), rear spray, S-type high-pressure water cannon, fire hose connection, tank anti-corrosion coating, side protection, climbing ladder, rear work platform, suction hose, arrow warning light

5. Optional High-Pressure Cleaning System

Parameter Value
Auxiliary Engine (Optional) Jiangling 4-cylinder / Lifan twin-cylinder
Auxiliary Engine Working Speed 180 – 250 r/min
High-Pressure Pump Brand (Optional) Domestic Well-Known Brand
High-Pressure Pump Pressure 3 – 5 MPa
High-Pressure Water Flow 55 L/min

6. Tunnel Cleaning Brush & Arm System

Parameter Value
Cleaning Brush Quantity 1 cylindrical brush
Cleaning Brush Diameter 800 mm
Cleaning Brush Length 1500 mm
Cleaning Brush Material Polyethylene pentagonal filament
Cleaning Brush Rotation Speed 300 – 450 rpm
Cleaning Arm Ground Height Range 0 – 6.5 m
Cleaning Arm Left-Right Rotation 90°
Cleaning Brush Up-Down Adjustment 120°
Cleaning Brush Left-Right Adjustment 180°
Spray Water Flow Range 0 – 42.3 L/min
System Working Pressure 4 – 16 MPa
System Flow Rate 40 L/min
Working Cleaning Speed 2 – 20 km/h
Control Mode In-cab operation
Standard System Accessories Hydraulic oil tank, filter, hydraulic pump, hydraulic motor, distribution valve, oil cylinder, hydraulic hoses, reducer

7. Chassis Standard Configuration

Parameter Value
Cab Color Sheep Fat White
Axle Brand Dana Axles
Front Axle Rated Load 4.5 Tons
Rear Axle Rated Load 10 Tons
Frame Specification 250 mm Frame
Cab Interior Original factory air conditioner, electric windows, central door locking
Brake System ABS anti-lock braking system, air-over-hydraulic spring brake, exhaust brake
