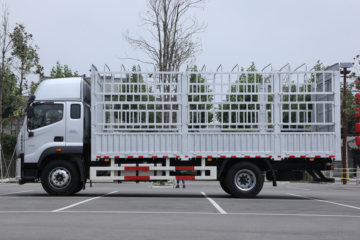

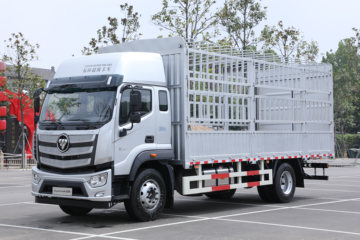

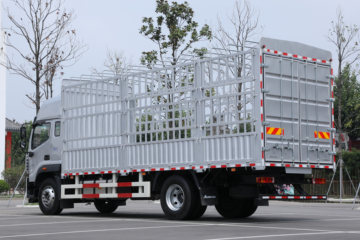

Foton Aumark R Series 220 HP 4x2 6.8m Grid-Type Cargo Truck

Foton Aumark R Series 220 HP 4x2 6.8m Grid-Type Cargo Truck
Foton Aumark R Series 220 HP 4x2 6.8m Grid-Type Cargo Truck
Foton Aumark R Series 220 HP 4x2 6.8m Grid-Type Cargo Truck
Foton Aumark R Series 220 HP 4x2 6.8m Grid-Type Cargo Truck
1 / 4
Foton Aumark R Series 220 HP 4x2 6.8m Grid-Type Cargo Truck
Foton Aumark R Series 220 HP 4x2 6.8m Grid-Type Cargo Truck
Foton Aumark R Series 220 HP 4x2 6.8m Grid-Type Cargo Truck
Foton Aumark R Series 220 HP 4x2 6.8m Grid-Type Cargo Truck
Category Item Specification
Basic Vehicle Information Announcement Model BJ5166CCY-1A
Vehicle Type Stake Cargo Truck
Drive Type 4×2
Wheelbase 5150mm
Cargo Box Length Class 6.8m
Overall Length 9m
Overall Width 2.55m
Overall Height 3.95m
Front Track 1955mm
Rear Track 1800mm
Curb Weight 7.975 tons
Rated Payload 7.895 tons
Gross Vehicle Weight 16 tons
Maximum Speed 89km/h
Origin Changping, Beijing
Tonnage Class Medium-duty Truck
Required Driving License A1, A2, B2
Approach Angle 18°
Departure Angle 9°
Front Overhang / Rear Overhang 1.27m / 2.58m
Energy Type Diesel
Remarks Optional Fast 8JS85E transmission, 4.875/4.111 rear axle ratio, 450L/600L aluminum alloy fuel tank, air suspension seat
Engine Parameters Engine Brand Foton Cummins
Engine Model Foton Cummins F4.5NS6B220
Engine Series Foton Cummins F4.5
Number of Cylinders 4
Fuel Type Diesel
Cylinder Arrangement Inline
Displacement 4.46L
Emission Standard China National VI
Max Output Power 162kW
Max Horsepower 220 HP
Max Torque 820N·m
Max Torque Speed Range 1300–1500rpm
Rated Speed 2300rpm
Aftertreatment Technical Route SCR+DOC+DPF
Transmission Parameters Transmission Model Fast 8JS85TE
Transmission Brand Fast
Shift Mode Manual
Forward Gears 8
Reverse Gears 2
Cargo Box Parameters Cargo Box Type Stake Body
Cargo Box External Length 6.8m
Cargo Box External Width 2.45m
Cargo Box Internal Width 2.45m
Cab Parameters Cab Type Extended Half Row High Roof Cab
Cab Suspension Four-point mechanical suspension
Cab Width 2200mm
Cab Tilt Mode Manual Tilt
Rated Passengers 2 persons
Seat Layout Extended Half Row
Driver Seat Type Mechanical shock-absorbing seat
Fuel Tank Fuel Tank Material Aluminum Alloy
Fuel Tank Capacity 300L
Chassis Parameters Front Axle Rating 3.6t
Front Axle Allowable Load 5600kg
Frame Size Longitudinal beam section height 234mm
Rear Axle Rating 8t
Rear Axle Allowable Load 10400kg
Rear Axle Gear Ratio 4.333
Suspension Leaf Spring Configuration 10/10+8 pieces
Front & Rear Suspension Type Front and rear leaf spring suspension
Tire Parameters Tire Specification 10R22.5 16PR
Number of Tires 6 pcs
