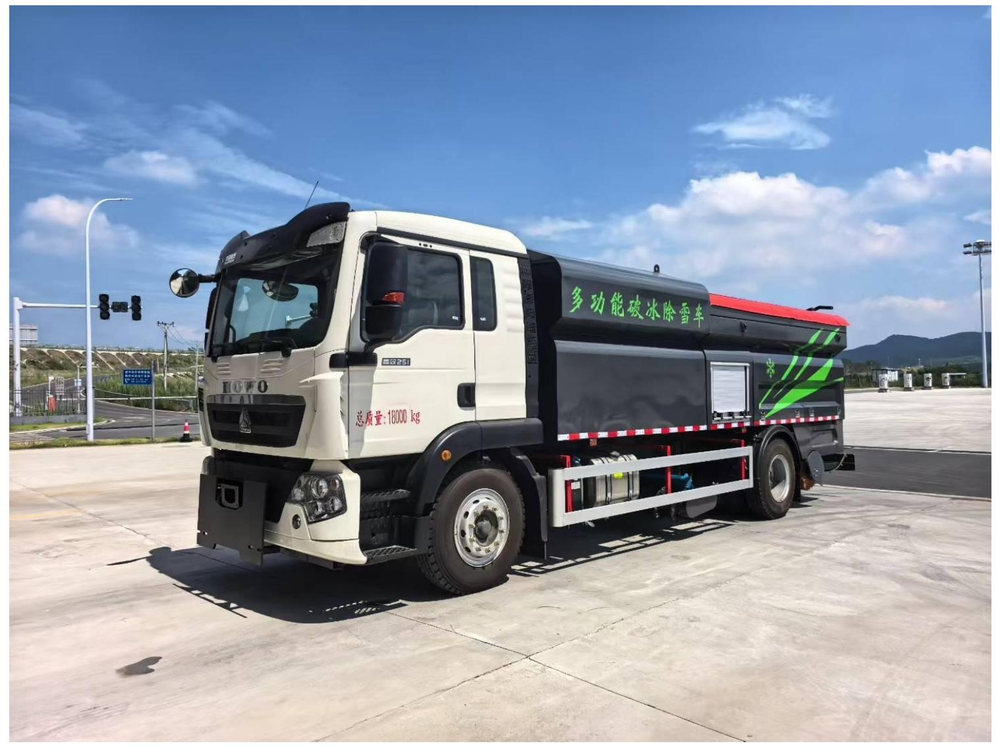

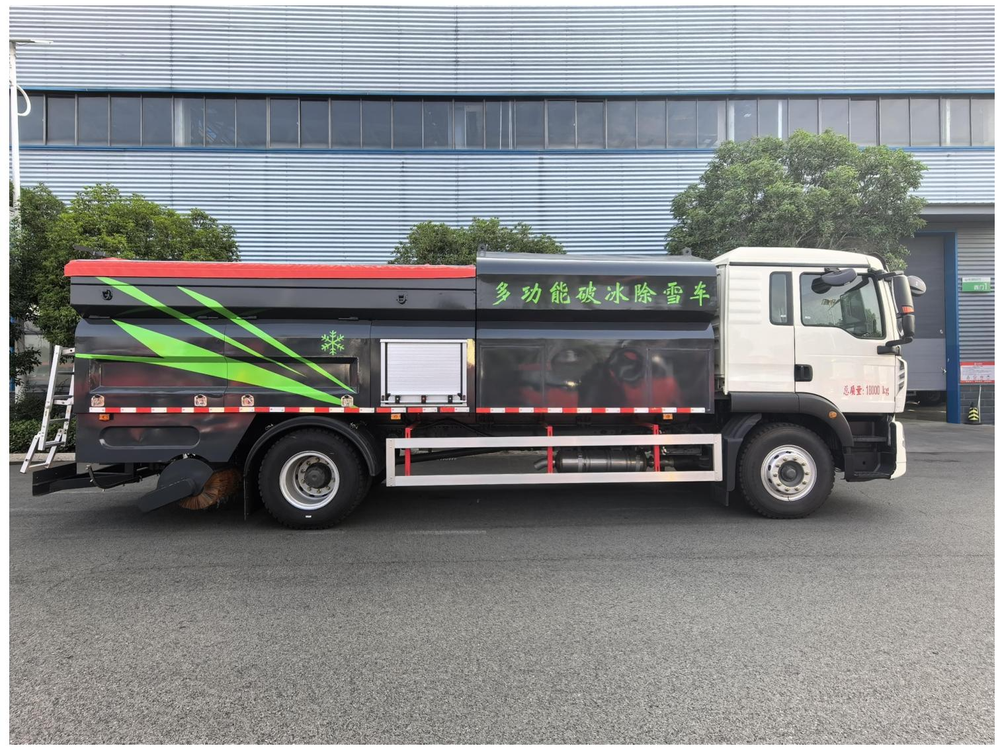

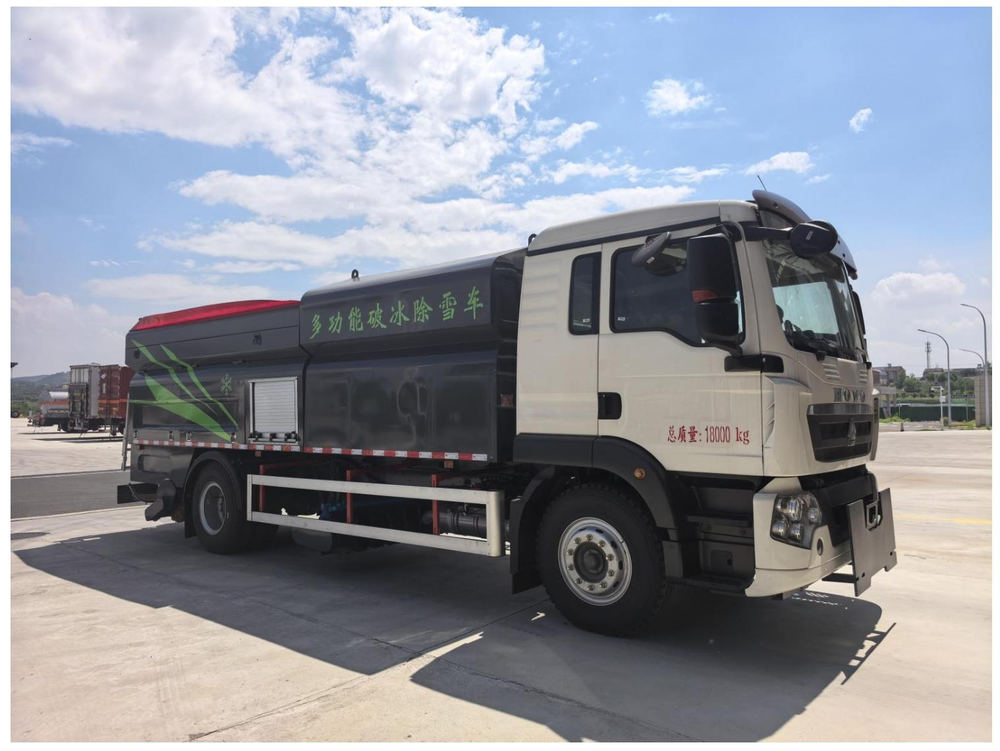

HOWO Multi-functional Ice Breaking & Snow Removal Truck

HOWO Multi-functional Ice Breaking & Snow Removal Truck
HOWO Multi-functional Ice Breaking & Snow Removal Truck
HOWO Multi-functional Ice Breaking & Snow Removal Truck
HOWO Multi-functional Ice Breaking & Snow Removal Truck
HOWO Multi-functional Ice Breaking & Snow Removal Truck
1 / 5
HOWO Multi-functional Ice Breaking & Snow Removal Truck
HOWO Multi-functional Ice Breaking & Snow Removal Truck
HOWO Multi-functional Ice Breaking & Snow Removal Truck
HOWO Multi-functional Ice Breaking & Snow Removal Truck
HOWO Multi-functional Ice Breaking & Snow Removal Truck

1. Complete Vehicle Basic Parameters

Parameter Value
Vehicle Type Snow Removal Truck
Complete Vehicle Model CL5181TCX6AHL
Gross Vehicle Weight 18000 kg
Rated Load Capacity 5870 / 5805 / 6670 / 6605 kg
Curb Weight 12000 kg / 11220 kg
Number of Axles 3
Cab Seating Capacity 2 persons / 3 persons
Fuel Type Diesel
Maximum Speed 89 km/h / 101 km/h
Chassis Model ZZ1187K501GF1

2. Dimension & Wheel Parameters

Parameter Value
Overall Dimension (L×W×H) 9600 × 2500 × 3100 mm
Wheelbase 5000 mm
Front Overhang / Rear Overhang 1550 mm / 3050 mm
Approach Angle / Departure Angle 18° / 7°
Front Track Width 1950 / 2035 / 1910 / 1930 / 2060 mm
Rear Track Width 1848 / 1860 / 1880 mm
Tire Specification Options 10.00R20 18PR; 295/80R22.5 18PR; 275/80R22.5 18PR
Number of Tires 6

3. Powertrain System

Parameter Value
Engine Model MC07.25-61
Engine Power Sinotruk Howo 258 HP

4. Deicing Agent Spreader System

Parameter Value
Hopper Material Q235 Carbon Steel
Spreader Material 4mm Carbon Steel
Spreader Hopper Volume 8 m³
Power Take-off Mode Chassis PTO-driven
Hydraulic Working Pressure ≥ 16 MPa
Material Conveying Type Scraper Chain Conveyor
Spreading Width 2 – 15 m (adjustable)
Spreader Disc Material Stainless Steel
Spreader Disc Diameter 550 mm
Deicing Agent Application Rate 20 – 300 g/m² (adjustable)
Working Speed 5 – 30 km/h
Control Mode Wired Remote Control
Standard Accessories Arrow warning light, tarpaulin, filter screen, aluminum alloy rear climbing ladder, aluminum alloy side protection

5. Front 3.5m Snow Plow (Optional)

Parameter Value
Product Model HL-XC-3500
Weight 600 kg
Lifting Height 200 – 400 mm
Operation Mode Electro-Hydraulic Linkage Control
Left-Right Deflection Angle ≥ 30°
Snow Removal Efficiency 90 %
Working Width 3300 mm
Maximum Snow Removal Thickness 150 mm
Working Speed 5 – 30 km/h
Maximum Obstacle Clearance Height 150 mm
Blade Height 700 mm
Blade Material High Wear-Resistant Steel
Blade Thickness 4 mm
Cutting Edge Thickness 16 mm

6. 5000L Hot Melt Water Tank System

Parameter Value
Tank Dimension (L×W×H) 1500 × 2350 × 1600 mm
Tank Material Carbon Steel
Heating Form Fuel Burner
Heating Temperature Range 0 – 100 °C
Liquid Deicing Agent Production Capacity 5000 kg/h
Pump Type Special Salt Water Gear Pump (Motor-Driven)
Pump Displacement 75 L/min
Deicing Agent / Salt Water Ratio (Preset) 7 / 3
Functions Heating + Stirring
Stirrer Type Built-in Blade Stirrer
Insulation Method Insulation cotton, heating, stainless steel combustion channel
Spray Rod Material Stainless Steel Spray Rod
Standard Accessories Low water level alarm, water temperature sensor, burner, generator, stirring motor, salt water pump
System Description Installed behind cab; insulated carbon steel tank with fuel heating and built-in circulation stirring; dissolves solid granular deicing agent into liquid via heating & stirring for pre-wetting or direct spraying

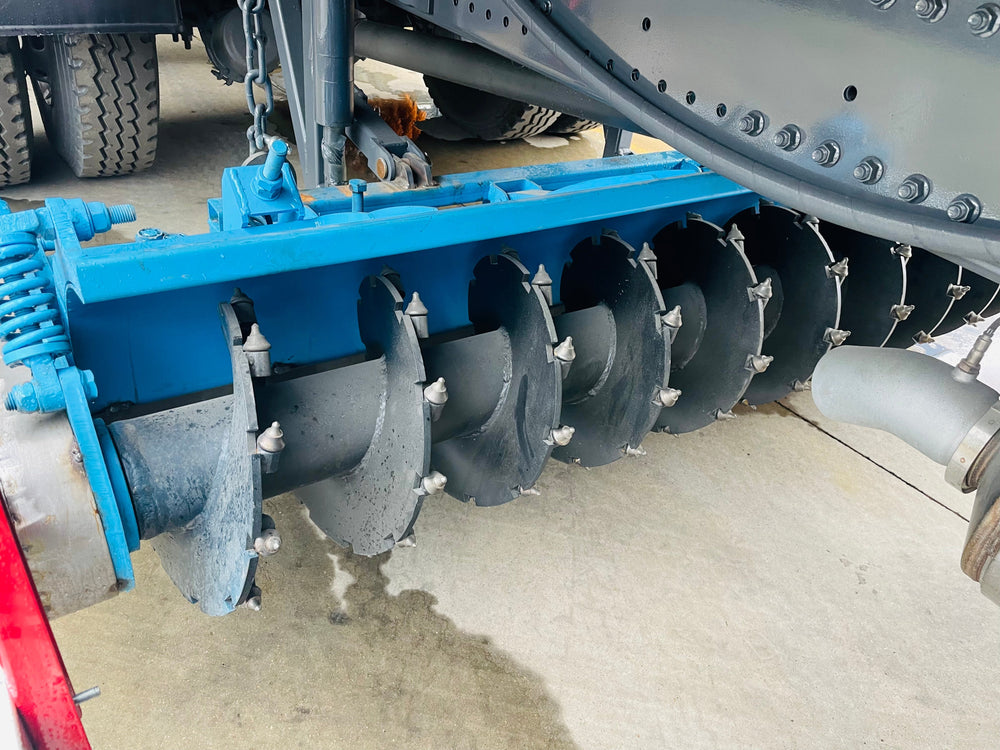

7. Ice Breaker (Optional)

Parameter Value
Ice Breaker Model HL-PB-600
Effective Ice Breaking Width 2500 mm
Ice Breaking Thickness 50 mm (solid ice) / 30 mm (compacted ice)
Ice Breaking Working Speed 4 – 15 km/h (solid ice) / 2 – 4 km/h (compacted ice)
Drive Form Hydraulic Motor Drive
Primary Application Compacted snow removal, deicing agent application, compacted snow & ice removal
Ice Breaking Blade Angle Right 30°
Obstacle Clearance Height 150 mm

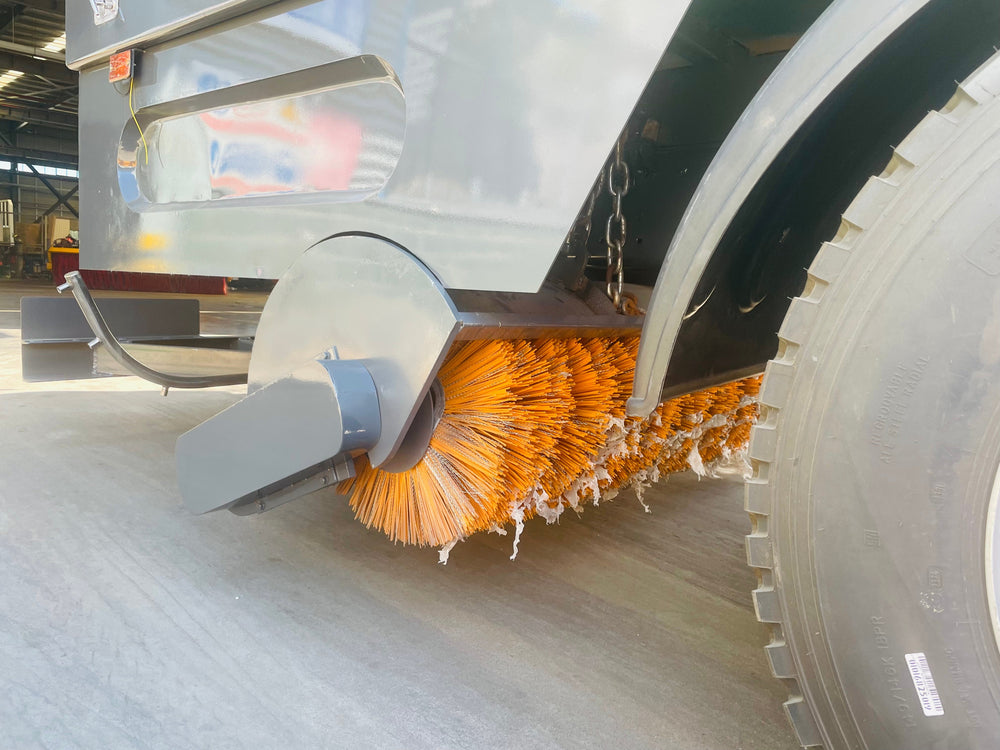

8. Rear Snow Roller Brush (Optional)

Parameter Value
Working Speed 40 km/h
Left-Right Deflection Angle ≥ 30°
Sweeping Roller Diameter 650 mm
Power Take-Off Vehicle transmission PTO (or transfer case)

9. Chassis Standard Configuration

Parameter Value
Cab Type Howo TX5 TX-K Cab, Basic Model, Sanitation Spec
Rearview Mirror Manual Rearview Mirror
Seat Configuration Main Mechanical Seat + Auxiliary Simple Seat
Transmission HW95508STC Gearbox + HW45ZC French PTO
Front Axle 1094 Self-Adjusting Arm Front Axle (Drum Brake)
Rear Axle MCJ09BGY Self-Adjusting Arm Single Rear Axle (Drum Brake)
Final Drive Ratio 5.29
Frame Specification Double-Layer Frame (6+4 / 250mm)
Suspension Front & Rear Reinforced Multi-Leaf Springs (7 / 7+6)
Steering Gear Domestic Steering Gear
Exhaust System Cylindrical Muffler
Brake System ABS (4S/4M)
Bumper Mid-Position All-Metal Bumper
Wheels Standard Steel Wheels
Tires 10.00R20 Mixed Pattern 18PR
Cab Lift Electro-Hydraulic Integrated Electric Lift
Fuel Tank 200L Fuel Tank
PTO Rotary PTO
Telematics Sinotruk Zhinengtong D Version (Special Operation Vehicle)
