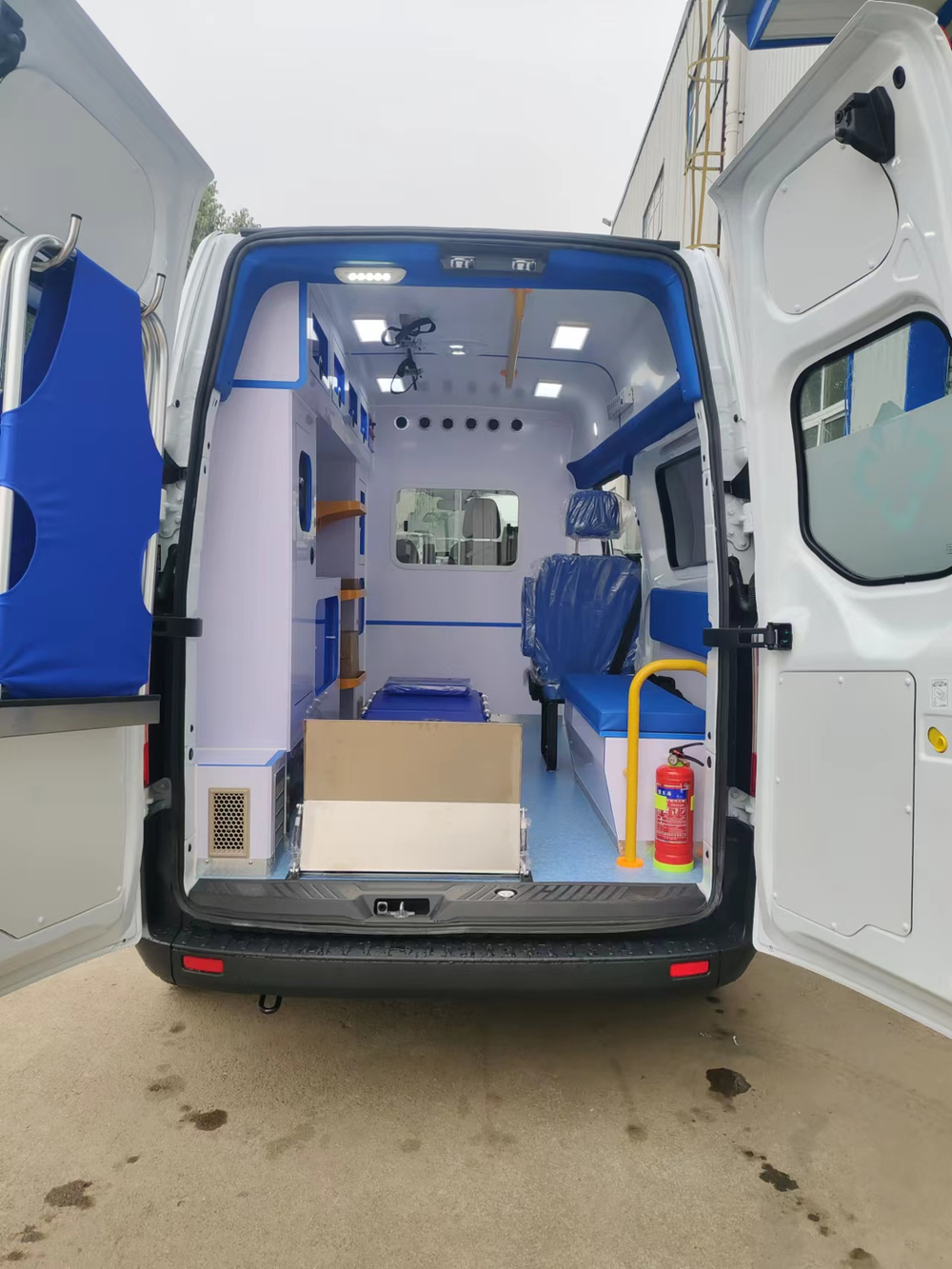

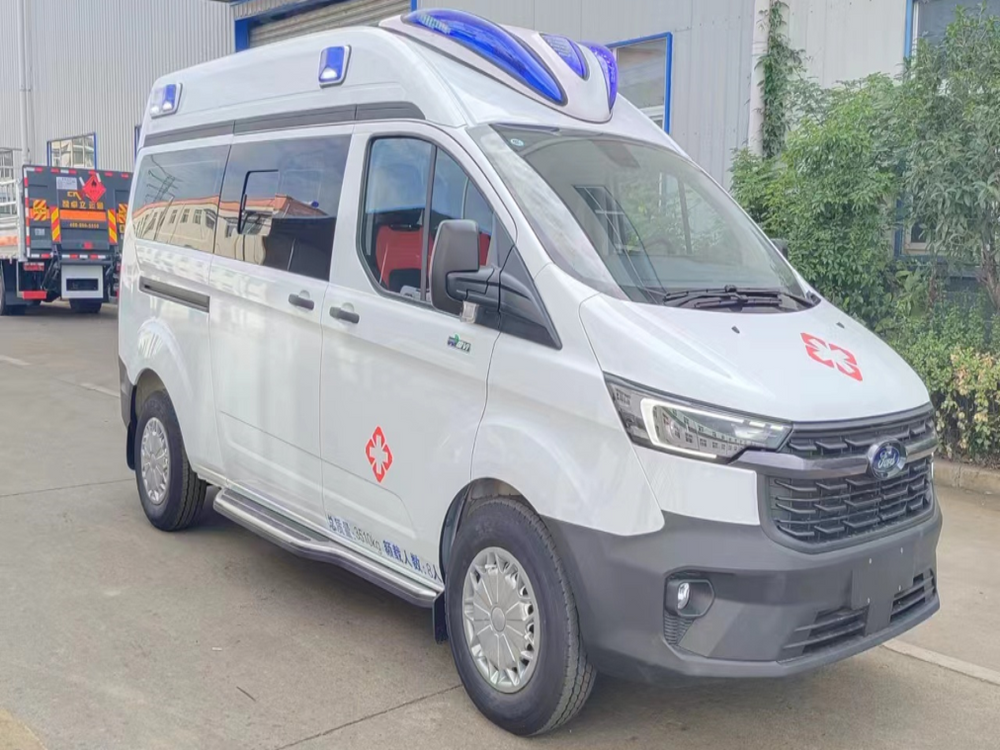

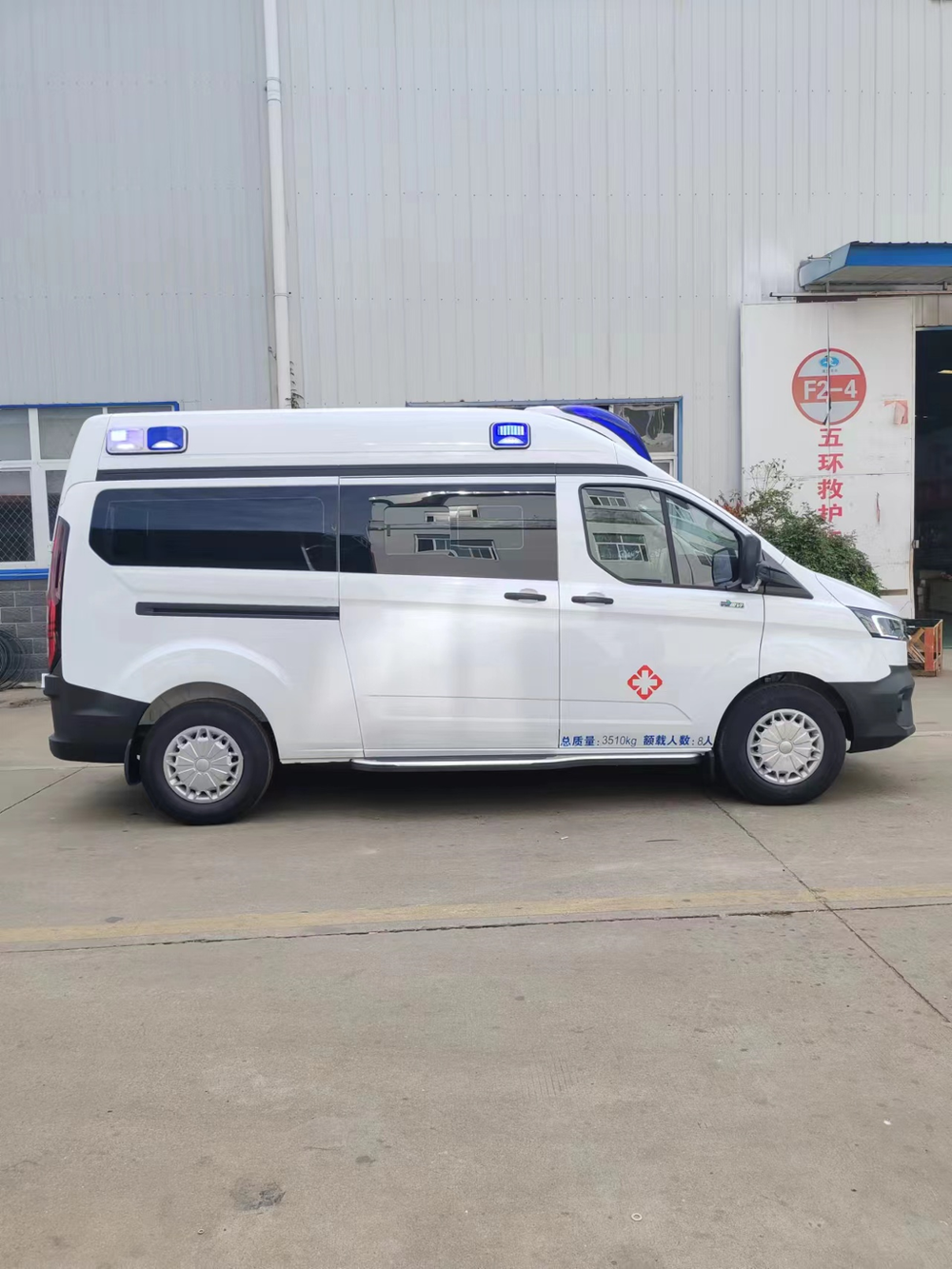

Ford Transit V362 Mid-wheelbase Mid-roof Diesel Emergency Ambulance

1 / 15

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Vehicle Technical Parameters
Parameter	Value
Vehicle Parameters
Overall Length (mm)	5341
Overall Width (mm)	1986
Overall Height (mm)	2470,2600
Wheelbase (mm)	3300
Seating Capacity	7 people

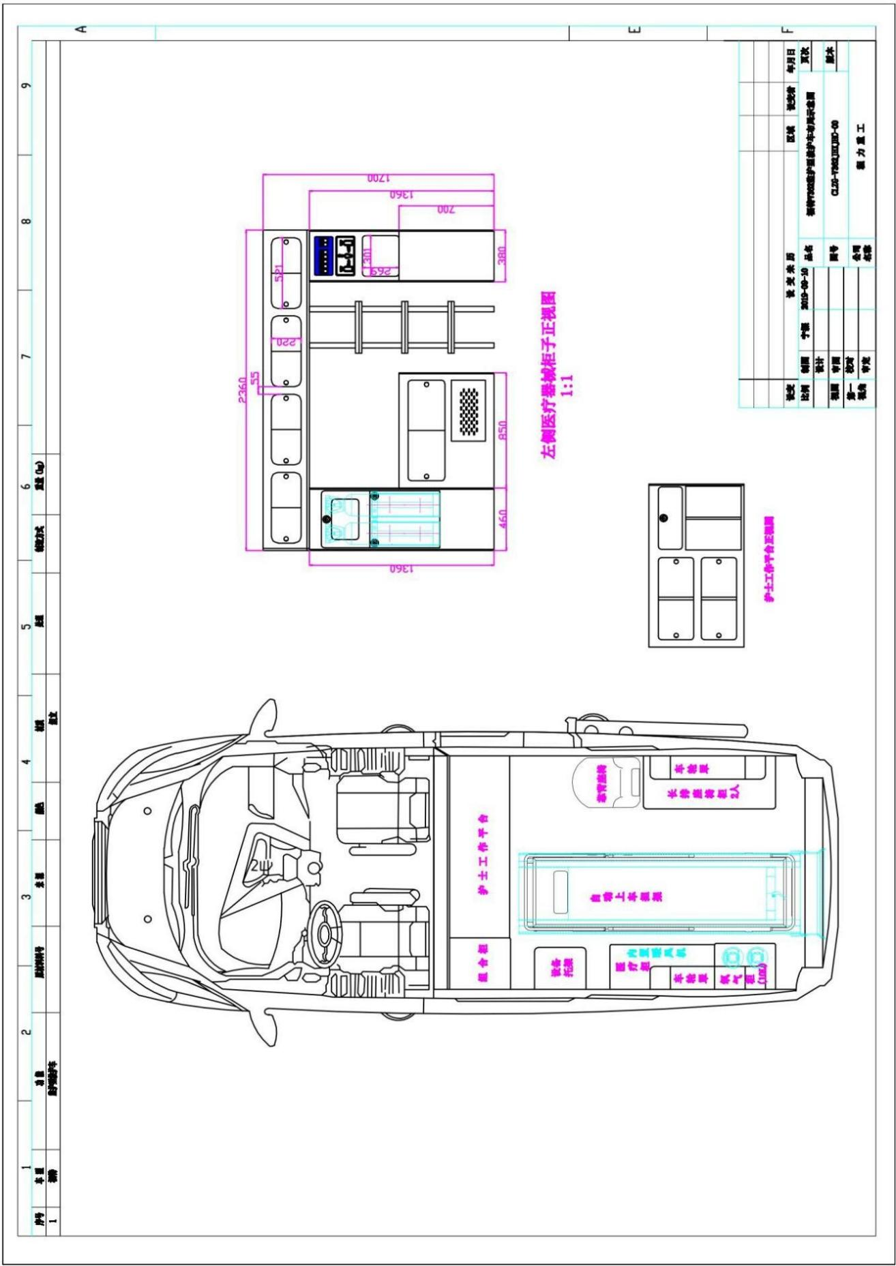

Medical Compartment Parameters
Compartment Length (mm)	2700
Compartment Width (mm)	1700
Compartment Height (mm)	1750
Engine
Model	DURATORQ4D20C6H National VI Engine
Powertrain	2.0T Turbocharged Diesel Engine
Fuel Supply Method	Direct Injection
Power Output (kW)	105
Maximum Torque (N·m)	355
Maximum Torque Speed (rpm)	1400-3200
Horsepower	143
Fuel Consumption per 100km	7.6L
Chassis Configuration
Transmission	5-speed Manual
Service Brake	Front Ventilated Disc/Rear Disc
Tires	215/75R16LT
Maximum Speed	160km/h
Fuel Tank Capacity	80L
Chassis Warranty	3 Years or 60,000 Kilometers
Suspension System	Front MacPherson Independent Suspension, Rear Leaf Spring Non-independent Suspension
Steering Assist Type	Hydraulic Assist
Body Structure	Load-bearing
Airbag	Driver's Seat Airbag
Brake Assist System	ABS/EBD/EBA
Reverse Assist System	Reverse Image, Reverse Radar

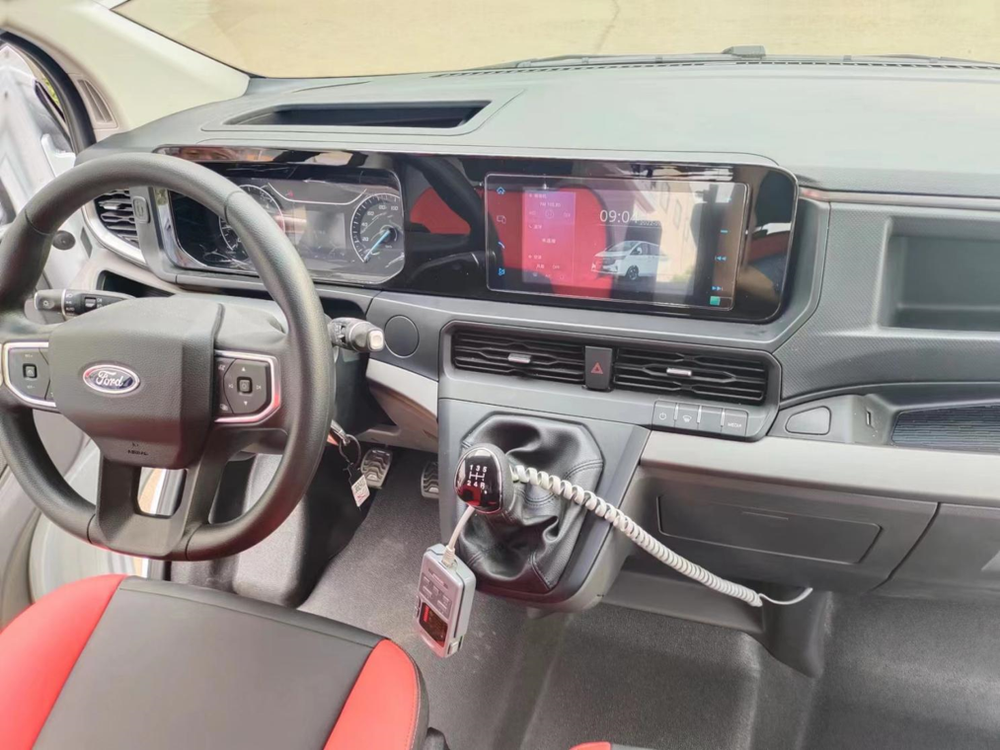

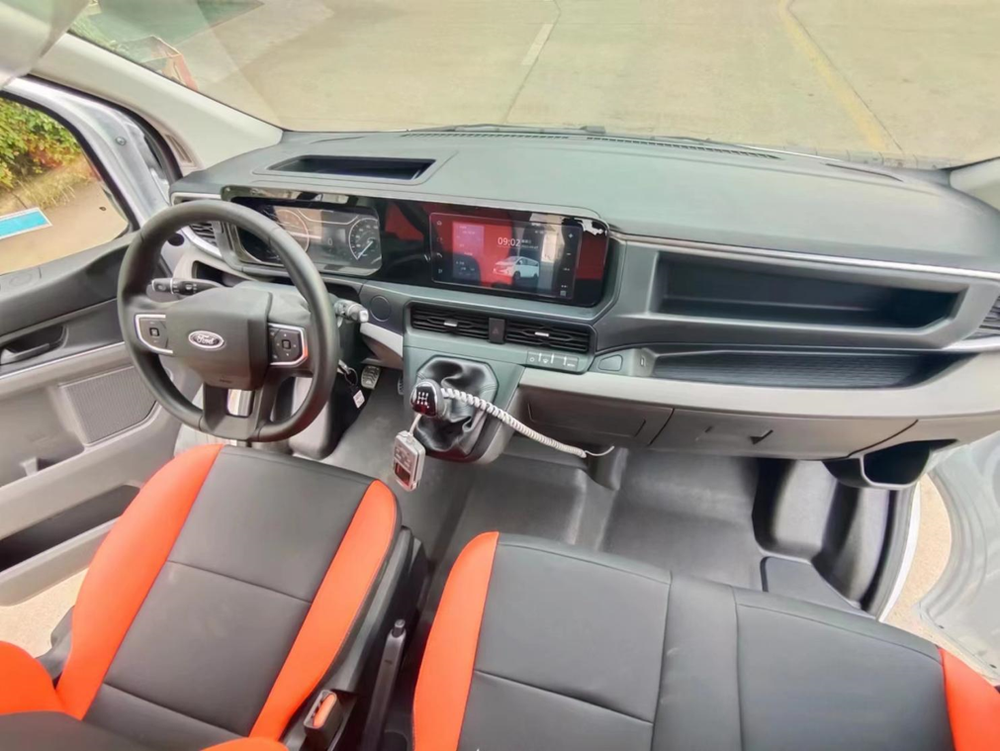

Steering Wheel	Multi-function Steering Wheel
Wiper	Induction Wiper
Cruise Control	Constant Speed Cruise
Locking System	Remote Key, Electronic Anti-theft System
Cab Seat	Driver's Seat Adjustable, Passenger's Seat Adjustable

Standard Equipment

Serial No.	Function Category	Configuration Name	Unit	Quantity	Remarks
1	Stretcher and Equipment	Automatic Loading Stretcher	Set	1	Easy to operate
2		Folding Cloth Stretcher	Set	1	Hung on the rear door
3		Stretcher Guide Rail and Guide Plate	Set	1	For fixing the loading stretcher
4		Sliding Infusion Hanger	Set	1	With 2 slidable hooks
5	Oxygen Supply Facilities	Two 10L Oxygen Cylinders	Set	1	Placed in the oxygen cabinet at the left rear of the medical cabin
6		Oxygen Pressure Reducing Valve	Set	3	For controlling oxygen output pressure
7		Oxygen Terminal	Piece	3	International standard
8		Humidification Bottle	Piece	2	For adjusting oxygen humidity
9		Quick Connector	Piece	1	Quick connector for ventilator

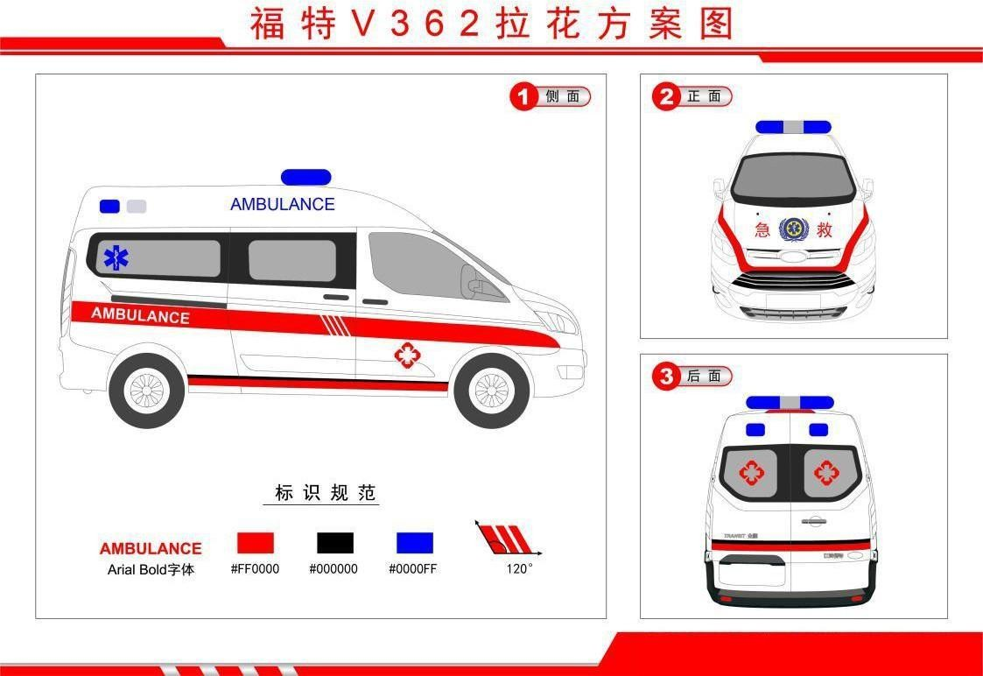

10	Exterior and Glass Film	Exterior Color Stripes	Set	1	Customizable according to customer requirements
11	Exterior and Glass Film	Full dark solar film on left and right sides, semi-transparent frosted film on rear side	Set	1	To protect patient privacy

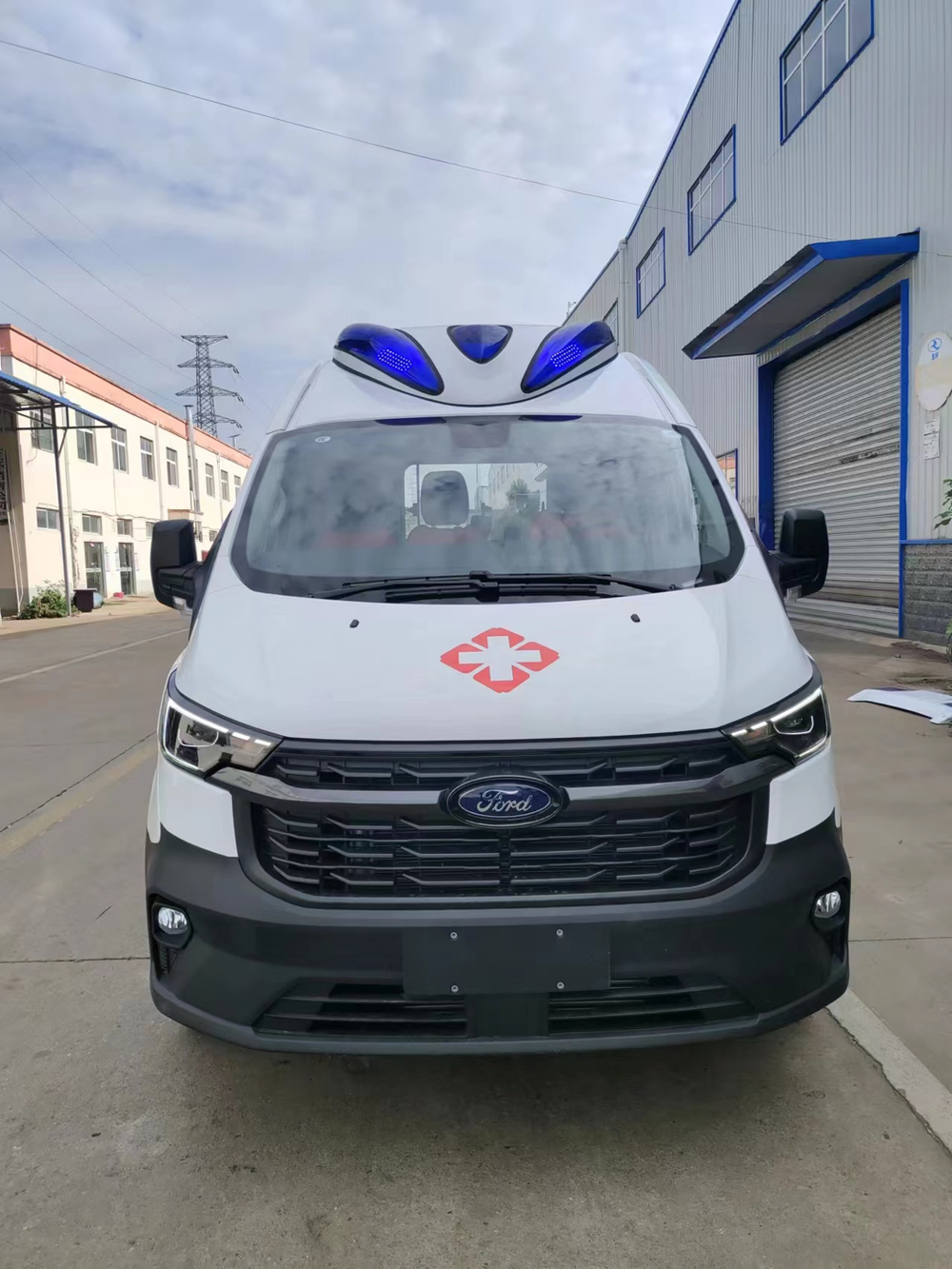

12	Warning Lights	Roof-mounted Three-hole Warning Light	Set	1	Novel appearance, strong warning effect
13		4 Blue 2 White Strobe Lights installed on left and right sides of the vehicle body	Piece	6	Novel appearance, strong warning effect

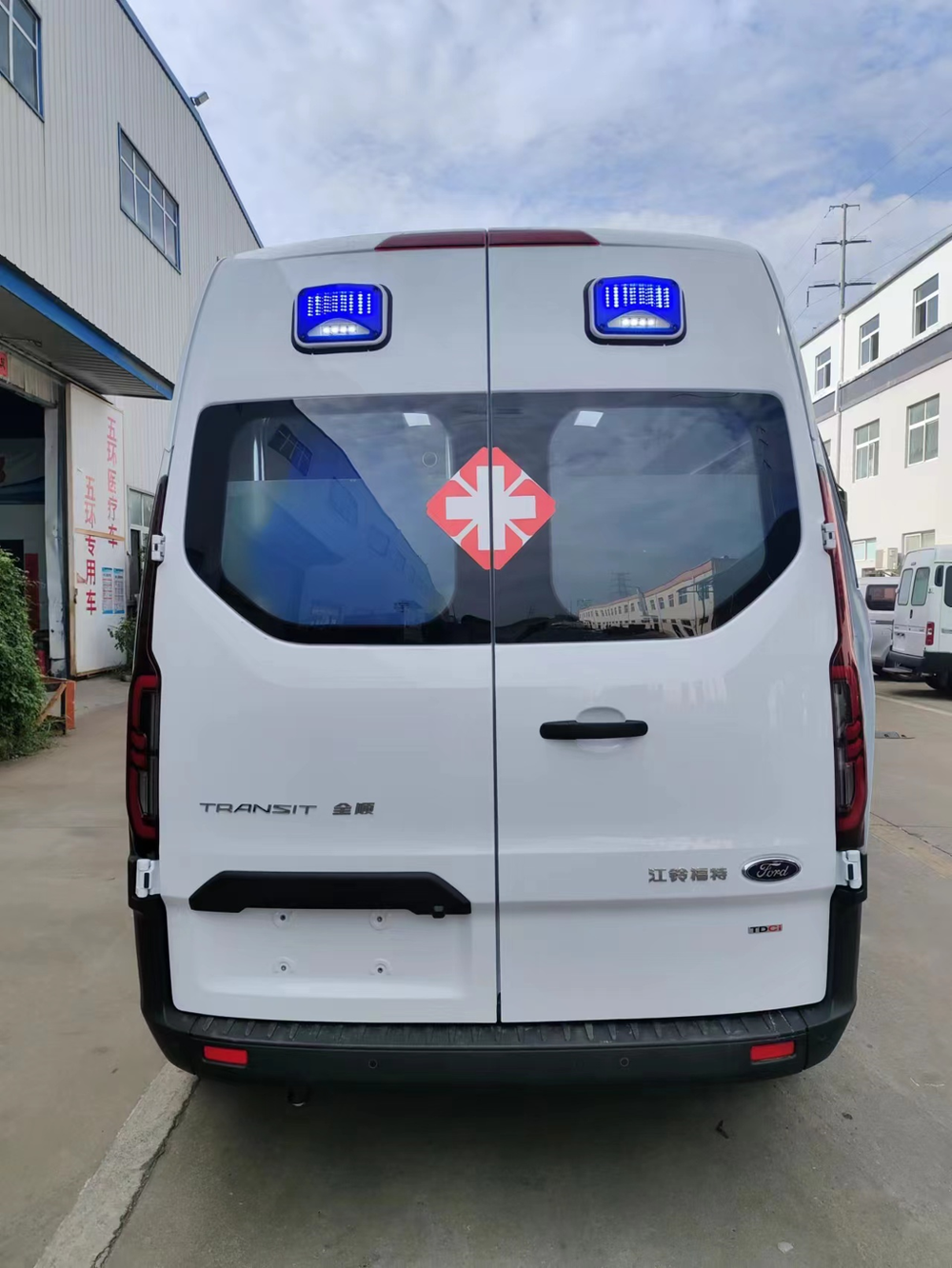

14		Blue Strobe Light installed above the rear door	Piece	2	Novel appearance, strong warning effect
15		Alarm Control Handle installed in the cab	Set	1	Easy to operate
16	Intelligent Power Management System	1000W Inverter	Unit	1	Provides uninterruptible power supply
17		220V Socket	Unit	4	Installed in the medical cabin
18		12V Socket	Unit	1	Installed in the medical cabin
19		Rear Cabin Air Conditioning and Heating System	Set	1	Central air conditioning
20		Control Panel	Set	1	Integrated control panel for vehicle electrical circuit
21		Multi-function Ventilation Fan	Set	1	Capable of air intake and exhaust
22		LED Lighting Lamp	Set	1	Environmentally friendly and energy-saving
23		LED Rear Lighting Lamp	Unit	2	Environmentally friendly and energy-saving
24		UV Disinfection Lamp	Unit	1	Capable of sterilization
25		Door Control Lamp	Unit	1	Environmentally friendly and energy-saving

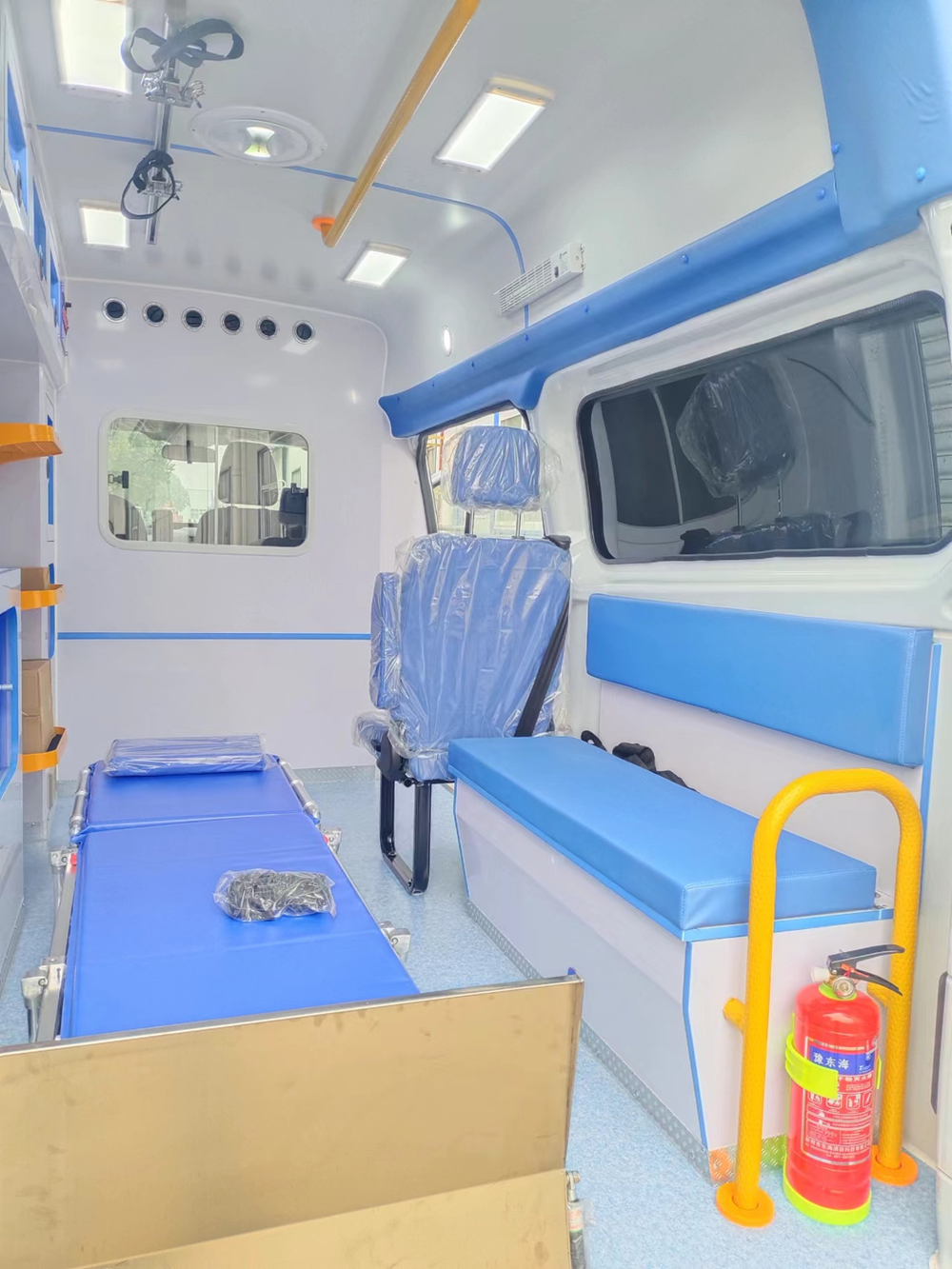

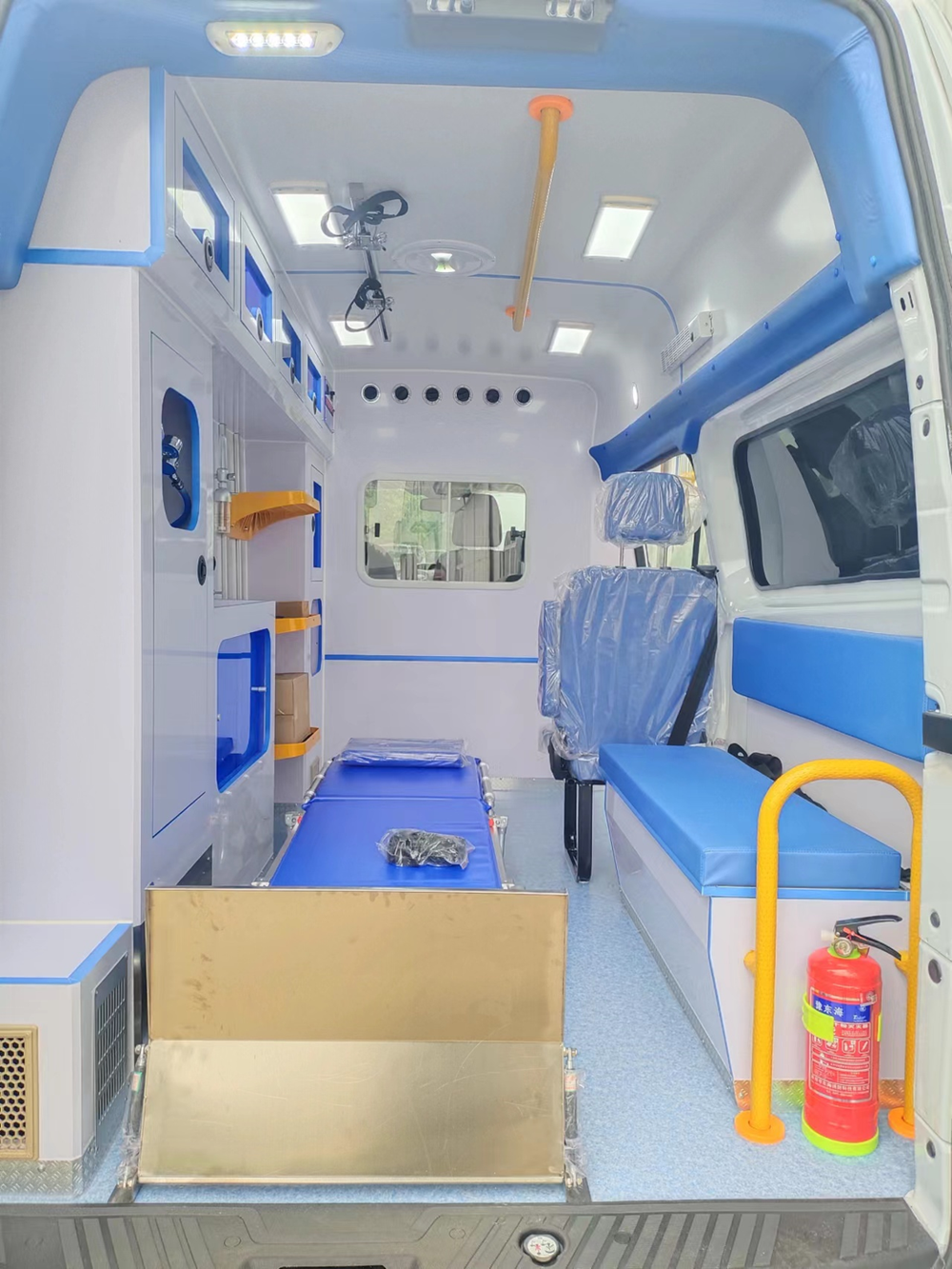

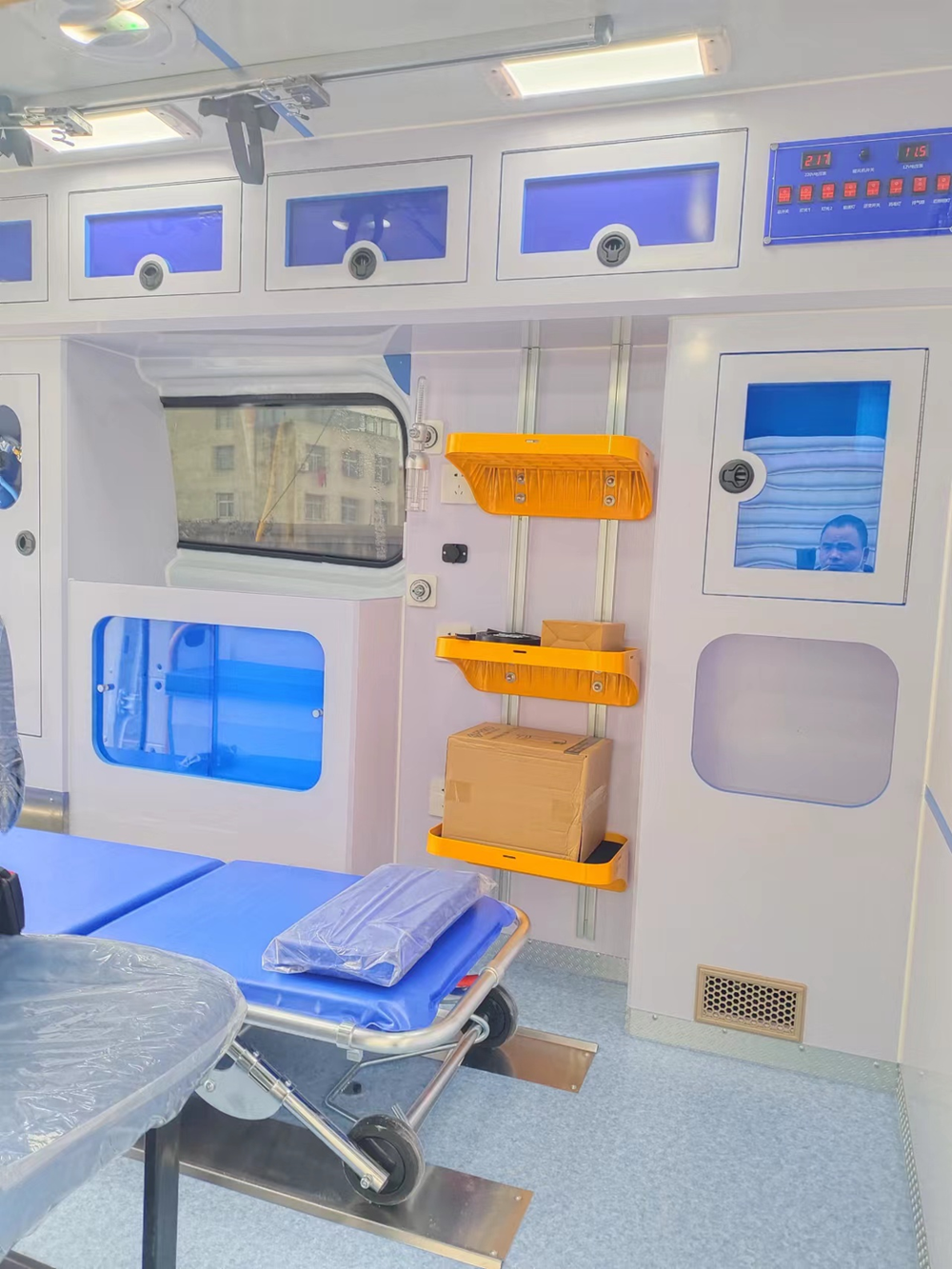

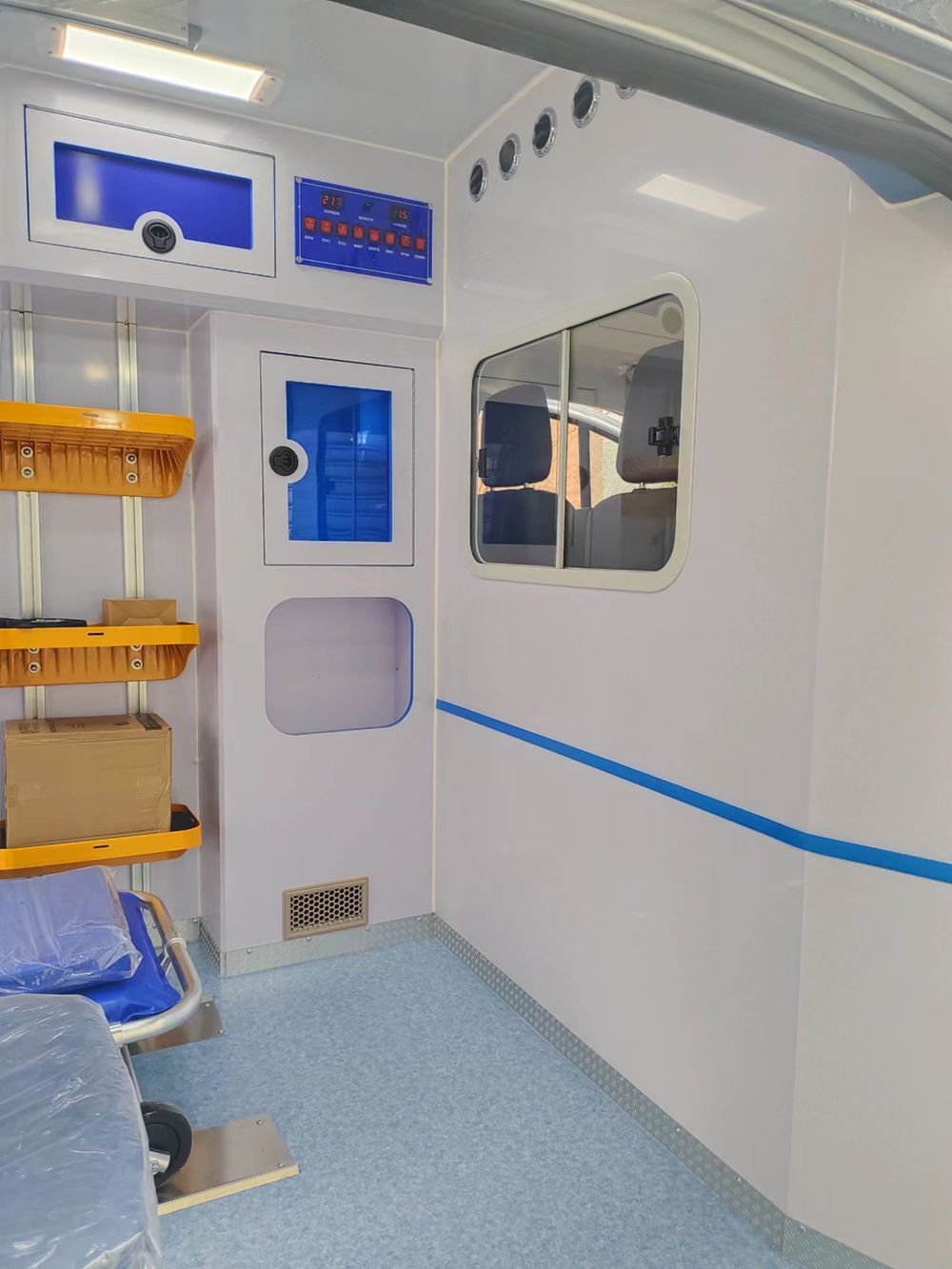

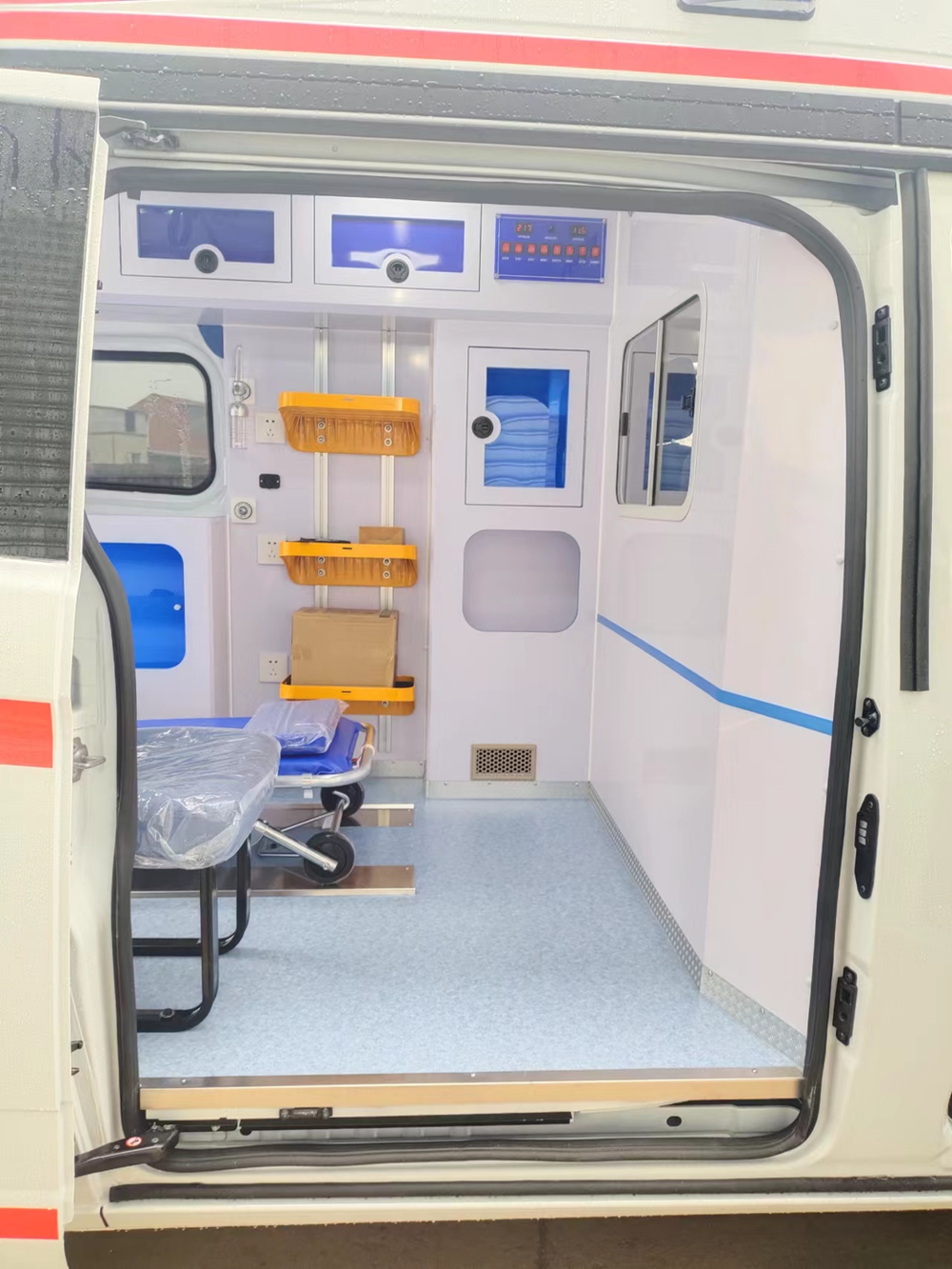

26	Medical Cabin Seat and Cabinet System	Partition Assembly between Cab and Medical Cabin	Set	1	With sliding window

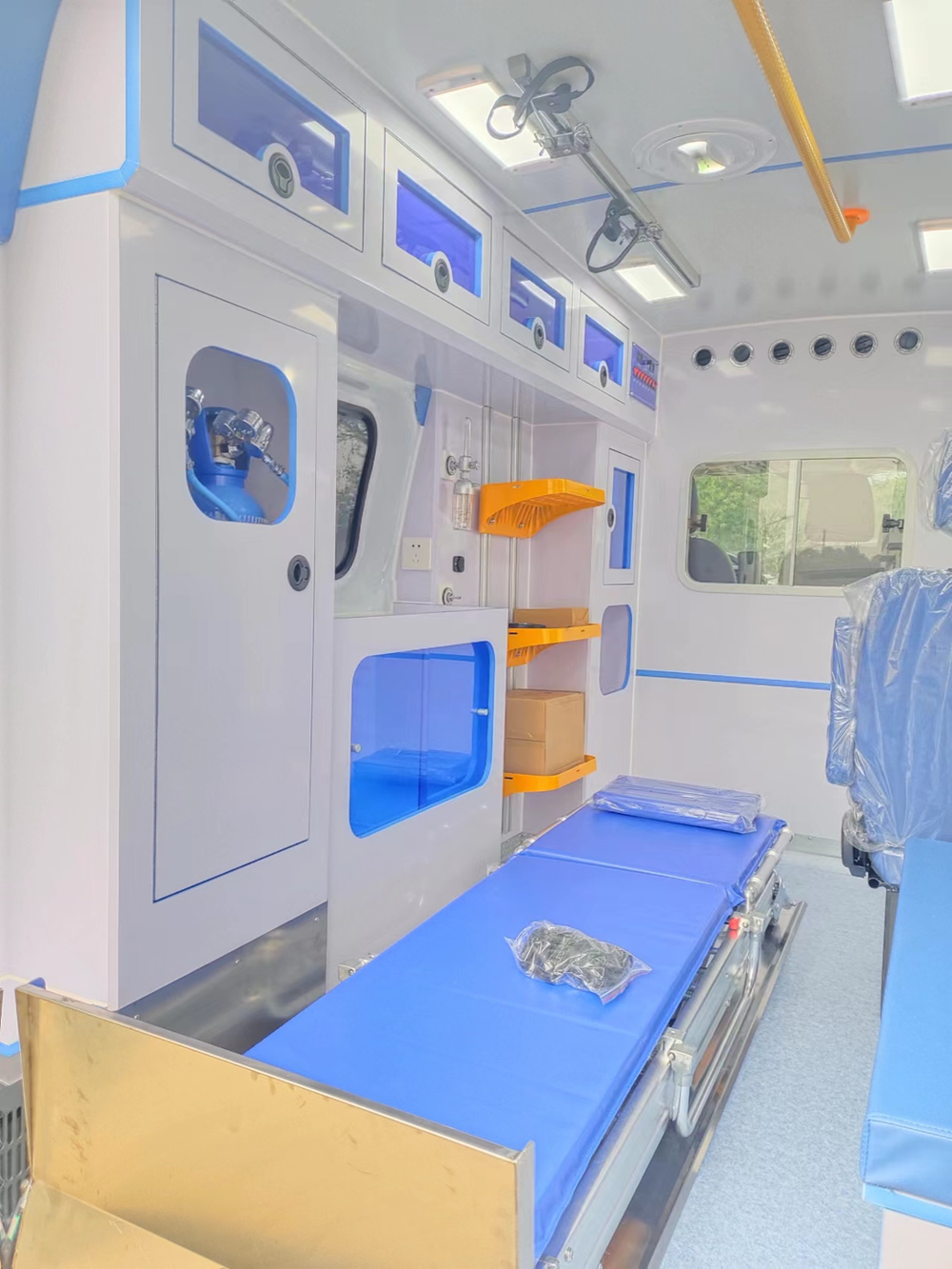

27		Storage Cabinet at Left Front of Medical Cabin	Set	1	For storing medical supplies
28		Medical Cabinet Level with Window in Medical Cabin	Set	1	With medical equipment platform
29		Oxygen Cabinet at Left Rear of Medical Cabin	Set	1	Can hold 2 pieces of 10L oxygen cylinders
30		Long Wall Cabinet at Upper Left of Medical Cabin	Set	1	For storing medical drugs
31		Independent Seat + Long Bench Seat on the Right Side	Set	1	For medical staff and patient's family members to sit
32		Aluminum-plastic Panel Interior Ceiling	Set	1	Beautiful appearance, easy to clean
33		Three-layer Adjustable Equipment Rack	Set	1	For placing and fixing medical equipment
34		Medical Special Floor Leather	Set	1	Waterproof, anti-corrosion, wear-resistant, antibacterial
35		Peripheral Wrapping of Medical Cabin	Set	1	Beautiful, anti-collision, easy to clean
36	Auxiliary Equipment	Roof-mounted Handrail	Unit	1	Yellow painted
37		Loading Handrail	Unit	1	Yellow painted
38		Medical Waste Bin	Unit	1	Pedal type
39		Medical Cabin Fire Extinguisher	Unit	1	2KG
